Sitemap

The Sitemap feature lets you define your application's navigation structure so the AI assistant can understand where users are and help them navigate. Each sitemap entry maps a URL pattern to a display name and optional placeholder resolvers.

Why Sitemap?​

Without a sitemap, the AI doesn't know your application's page structure:

User: "Take me to the premium package"
AI: "I don't have information about your application's pages."

With a sitemap configured:

Sitemap entry: /products/{productId}/details → "Product Details"
Placeholder resolver: productId → search_products tool

User: "Take me to the premium package"
AI: *calls search_products("premium package")* → navigates to /products/abc-123/details

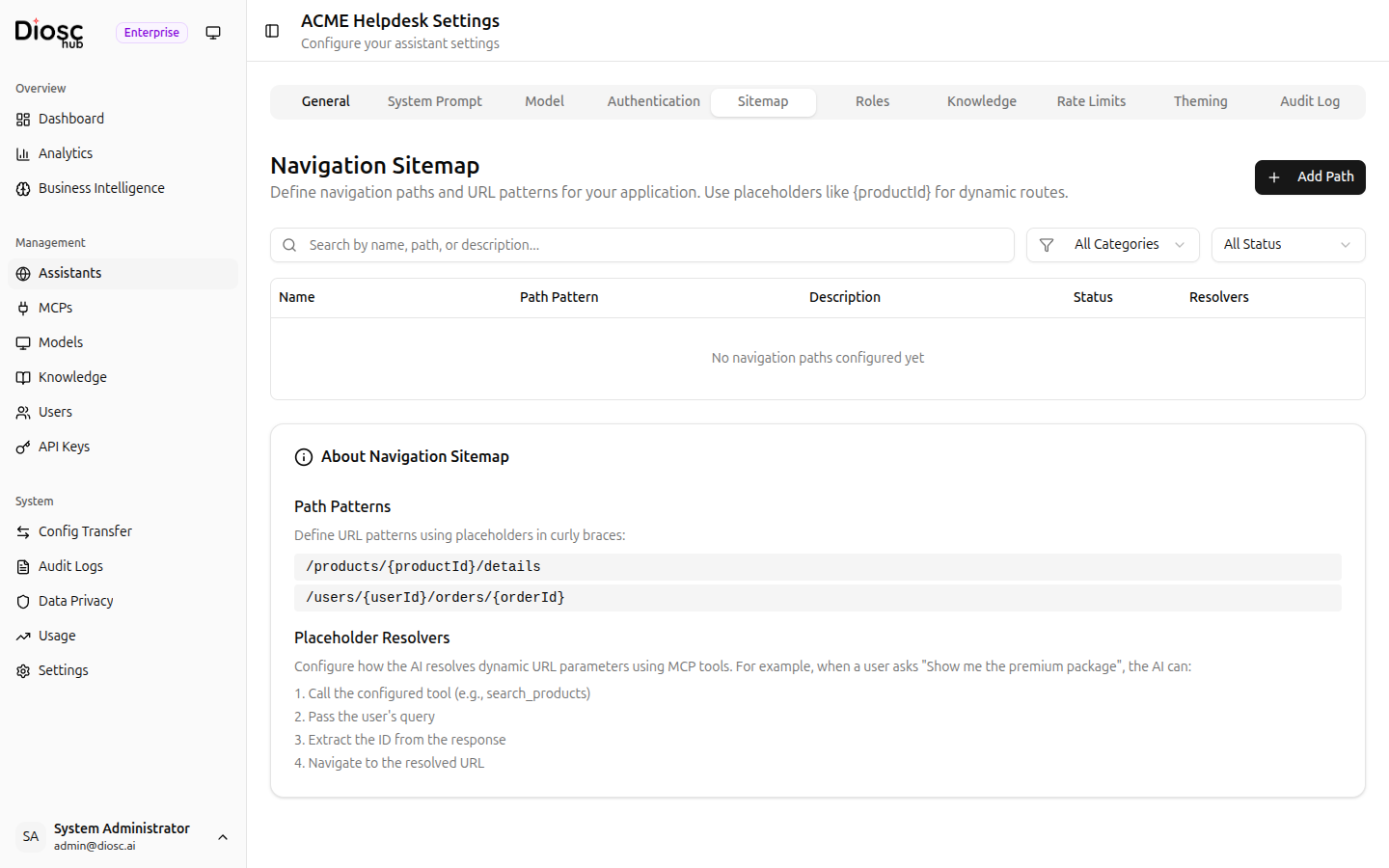

Accessing the Sitemap​

The Sitemap is configured per assistant. Navigate to:

Assistants → Select an assistant → Settings → Sitemap tab

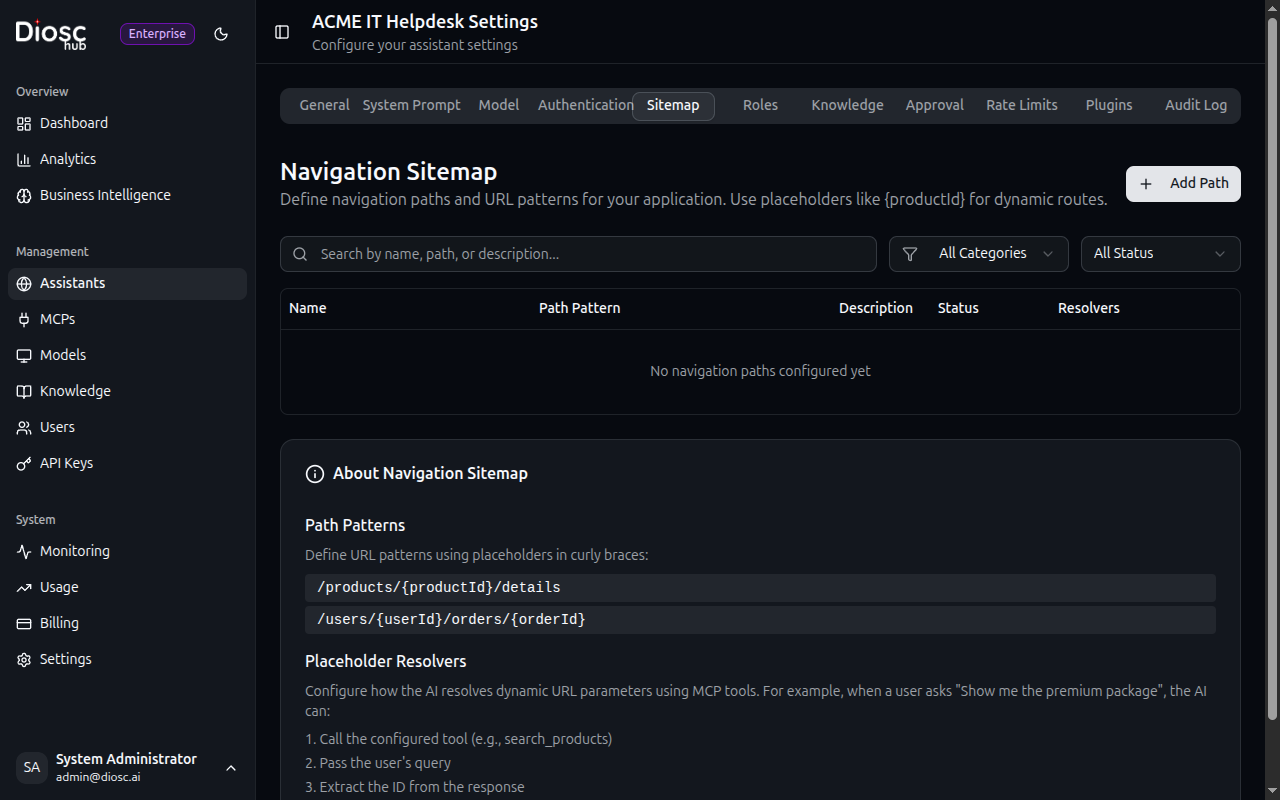

Sitemap List

Sitemap Entries​

Each sitemap entry defines a page in your application.

ColumnDescription
NameDisplay name for the page
Path PatternURL pattern with optional {placeholders}
DescriptionWhat this page is for
StatusActive/Inactive toggle
ResolversShows "Configured", "Needs Setup", or no placeholders
ActionsConfigure Resolvers, Edit, Delete

Filtering​

  • Search — Filter by name, path, or description
  • Category — Filter by category (e.g., "products", "admin")
  • Status — Filter by Active/Inactive

Creating a Sitemap Entry​

Click Add Entry to create a new sitemap entry.

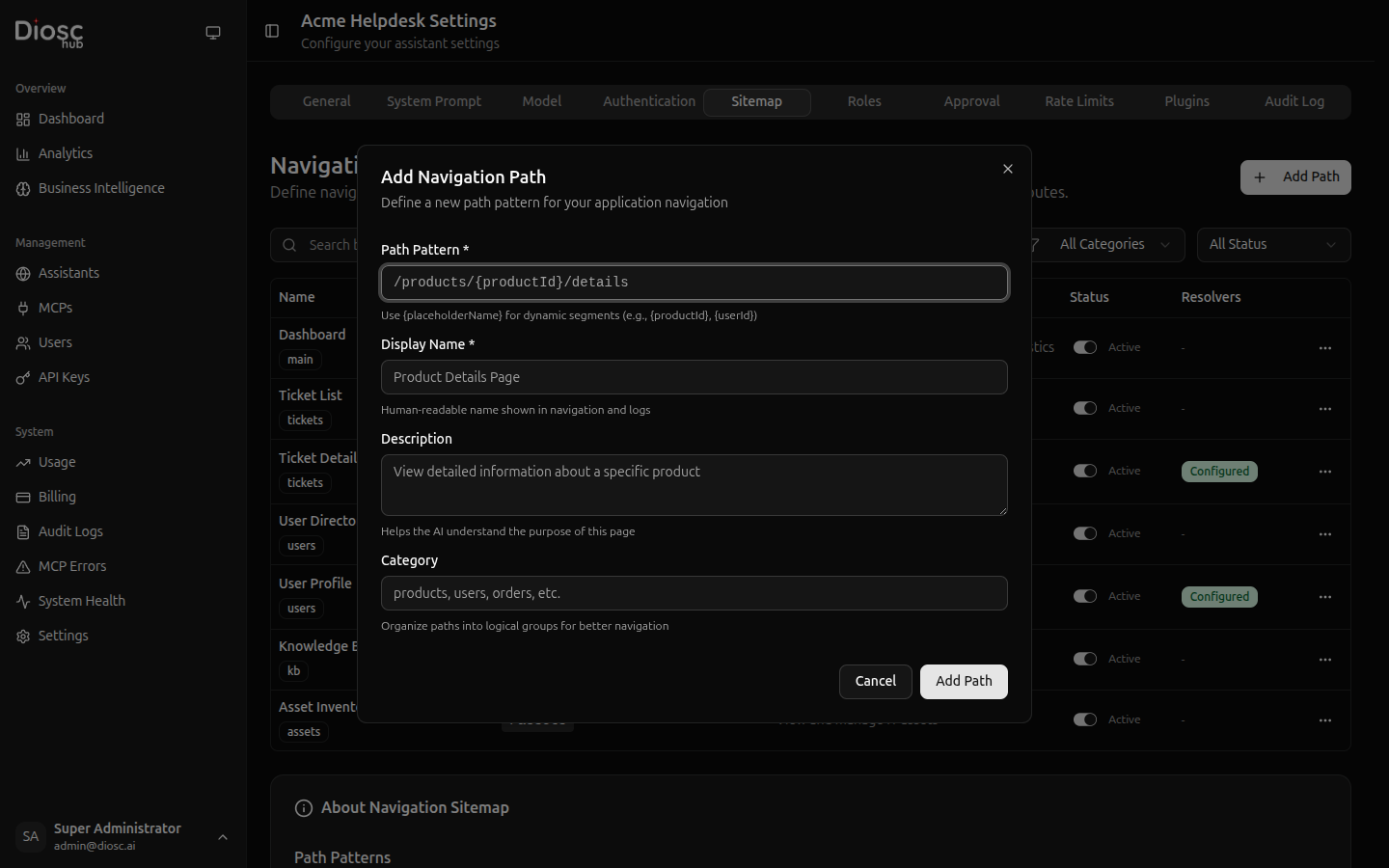

Create Sitemap Entry

FieldDescriptionRequired
Path PatternURL pattern (e.g., /products/{productId}/details)Yes
Display NameHuman-readable page name (e.g., "Product Details")Yes
DescriptionExplains the page to the AINo
CategoryGrouping label (e.g., "products")No

Path Patterns​

Use {placeholder} syntax for dynamic URL segments:

/products                         # Static path - Products list
/products/{productId}             # Single placeholder - Product page
/products/{productId}/details     # Placeholder in middle
/orders/{orderId}/items/{itemId}  # Multiple placeholders

Auto-Parent Detection​

When you create an entry, Diosc automatically detects its parent based on the path prefix. For example:

  • /products/{productId} is automatically linked as a child of /products

The detected parent is shown in an info box before you save.

Placeholder Resolvers​

When a path pattern contains {placeholders}, you need to configure resolvers that tell the AI how to convert user queries into actual IDs.

Click Configure Resolvers (or the dropdown menu → Configure Resolvers) on any entry with placeholders.

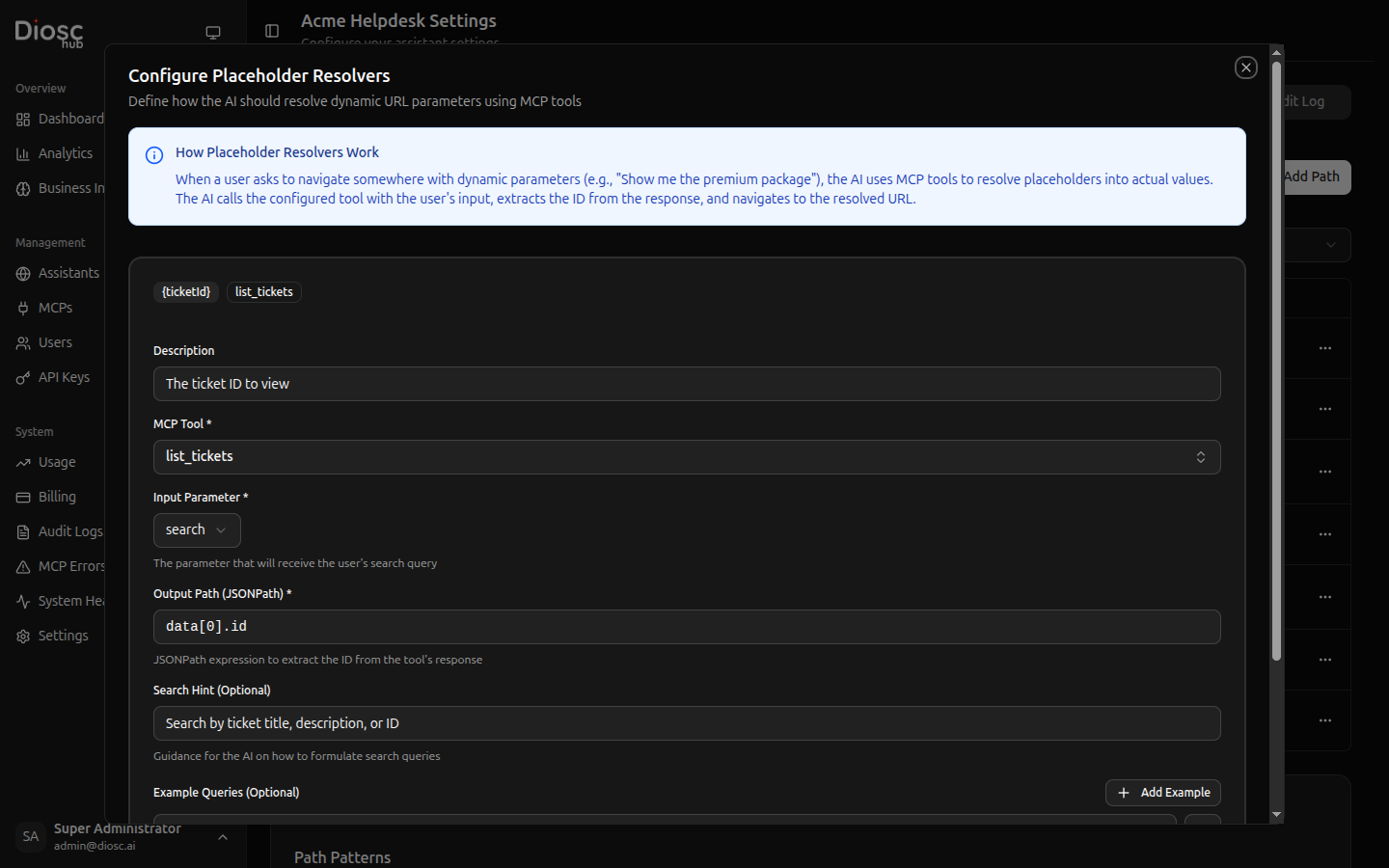

Configure Resolvers

For each placeholder, configure:

SettingDescriptionRequired
DescriptionWhat this placeholder represents (e.g., "Product ID")No
MCP ToolThe tool to call for resolving (e.g., search_products)Yes
Input ParameterWhich tool parameter receives the user's queryYes
Output PathJSONPath to extract the ID from the tool response (e.g., results[0].id)Yes
Search HintGuidance for the AI on how to searchNo
Example QueriesSample search terms to help the AINo

How Resolvers Work​

  1. User says: "Show me the premium package"
  2. AI identifies the sitemap entry /products/{productId}/details
  3. AI calls the configured MCP tool (e.g., search_products) with the user's query
  4. AI extracts the ID from the response using the output path
  5. AI navigates the user to /products/abc-123/details

Resolver Status​

In the sitemap table, each entry shows its resolver status:

  • Configured (green badge) — All placeholders have resolvers configured
  • Needs Setup (amber badge) — Some placeholders are missing resolver configuration
  • No badge — Path has no placeholders (static path)

Hierarchy​

Sitemap entries support parent-child relationships:

/products                           → Products (parent)
  /products/{productId}             → Product Detail (child)
    /products/{productId}/details   → Product Details (grandchild)
/orders                             → Orders (parent)
  /orders/{orderId}                 → Order Detail (child)

Benefits:

  • Organized structure that the AI can understand
  • Parent paths auto-detected based on path prefixes

Sort Order​

Each entry has a Sort Order field to control display ordering within the same level of the hierarchy.

Editing and Deleting​

Editing​

Click Edit from the dropdown menu to modify a sitemap entry. You can change:

  • Path pattern
  • Display name
  • Description
  • Category

Parent detection is re-evaluated when the path pattern changes.

Deleting​

Click Delete from the dropdown menu. If the entry has children:

  • A Cascade Delete toggle appears
  • Enable it to delete the entry and all its children
  • Otherwise, only the selected entry is deleted
warning

Deleting a sitemap entry cannot be undone.

Best Practices​

Define Your Full Navigation​

Map all major pages in your application:

/dashboard                          → Dashboard
/products                           → Products
/products/{productId}               → Product Detail
/products/{productId}/edit          → Edit Product
/orders                             → Orders
/orders/{orderId}                   → Order Detail
/customers                          → Customers
/customers/{customerId}             → Customer Detail
/settings                           → Settings

Configure Resolvers for All Placeholders​

Every {placeholder} should have a resolver configured so the AI can navigate users to specific pages. Without resolvers, the AI can only navigate to static paths.

Use Descriptive Names​

Good descriptions help the AI understand what each page is for:

Path: /orders/{orderId}
Name: Order Detail
Description: Shows full order details including items, shipping status,
payment information, and customer details. Users can view and manage
individual orders from this page.

Organize with Categories​

Use categories to group related pages:

  • products — All product-related pages
  • orders — All order-related pages
  • admin — Administrative pages
  • reports — Reporting pages
